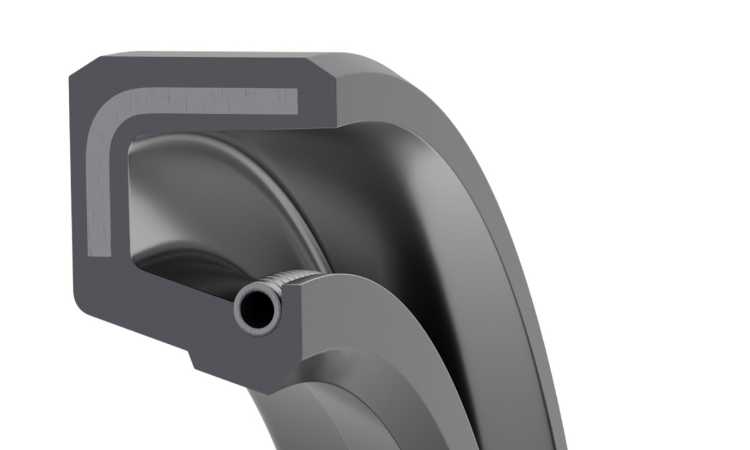

Single lip, rubber covered, spring-loaded. Can accommodate considerable surface roughness and thermal expansion of the housing and will not rust. Required for split housing and when sealing gaseous or low viscosity media.

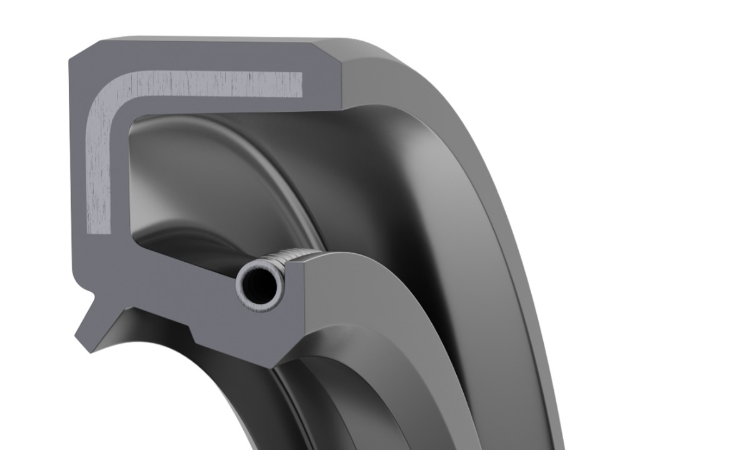

Twin lips, rubber covered, spring loaded. An Extra lip is required to exclude foreign matter from the primary sealing lip.

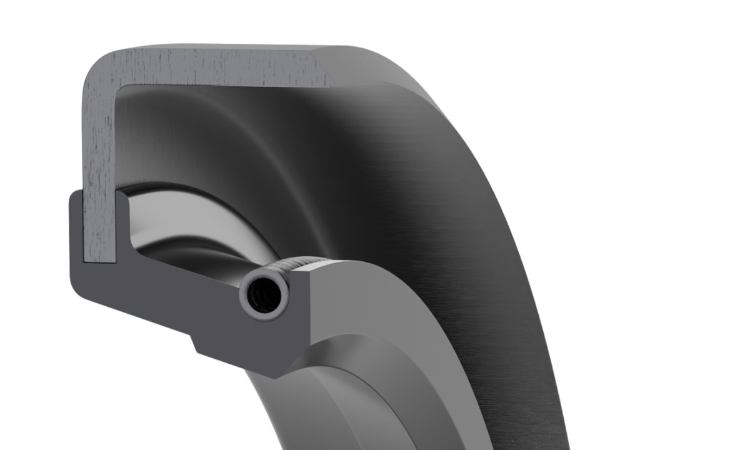

Single lip, Bare in outer metal case, spring loaded. Sealing is more difficult with housing bore of considerable surface roughness andsubject to thermal expansion.

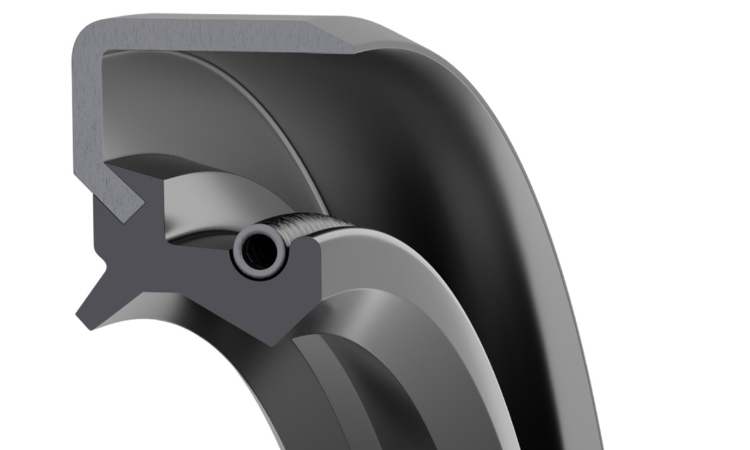

Twin lips, Bare in outer metal case, spring loaded. Can be used in applications requiring the extra lip for foreign matter exclusion but where the extra strength of an inner case is not needed.

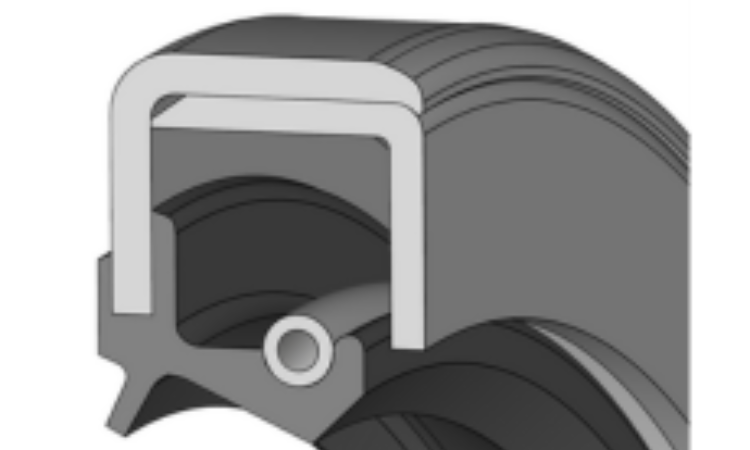

Twin lips, outer metal case with reinforcing case, Spring loaded. It is recommended where an extra lip is requested to excluded foreign matter from the primary sealing lip. The inner case provided for maximum strength, rigidity and protection of sealing lip and spring.

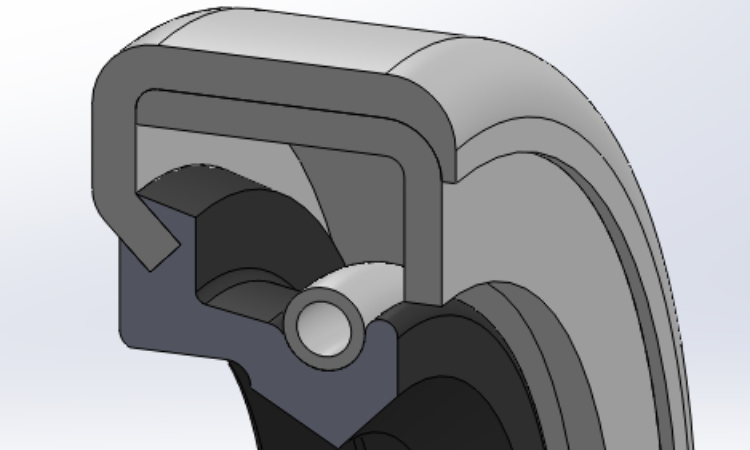

Single lip, outer metal case with reinforcing case. Spring loaded. Installation and sealing identical to Type SB, it is preferred for larger size application.

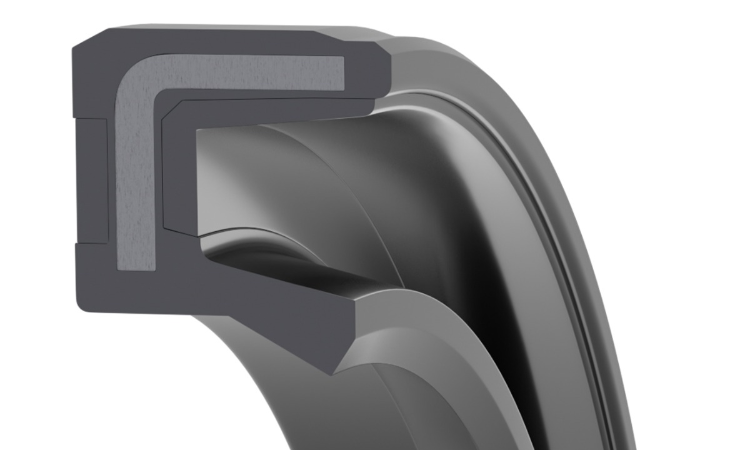

Single lip, rubber covered, springless. It is recommended somewhere against grease, secondary application against moderate to medium dust and dirty ingress

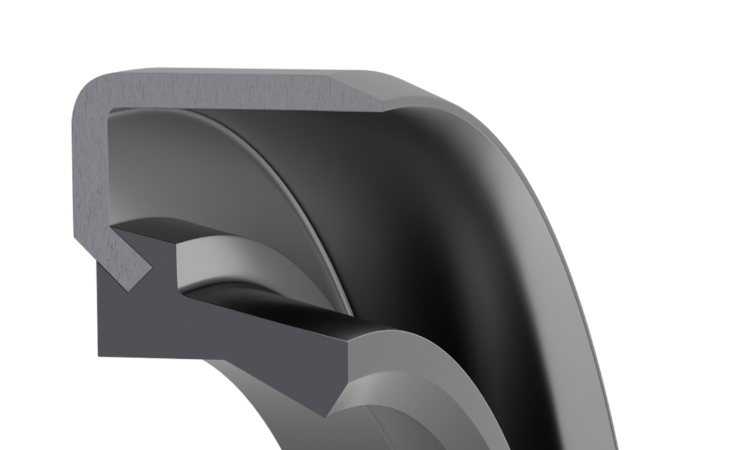

Single lip, outer metal case, springless. Sealing identical to Type VC, metal housing for particularly firm and exact seating in the bore.

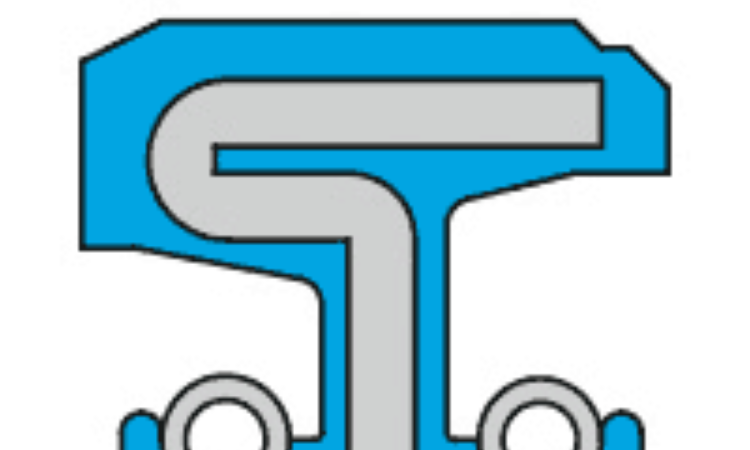

Rubber covered outer, incorporated Two spring-loaded lips for sealing of two medias.

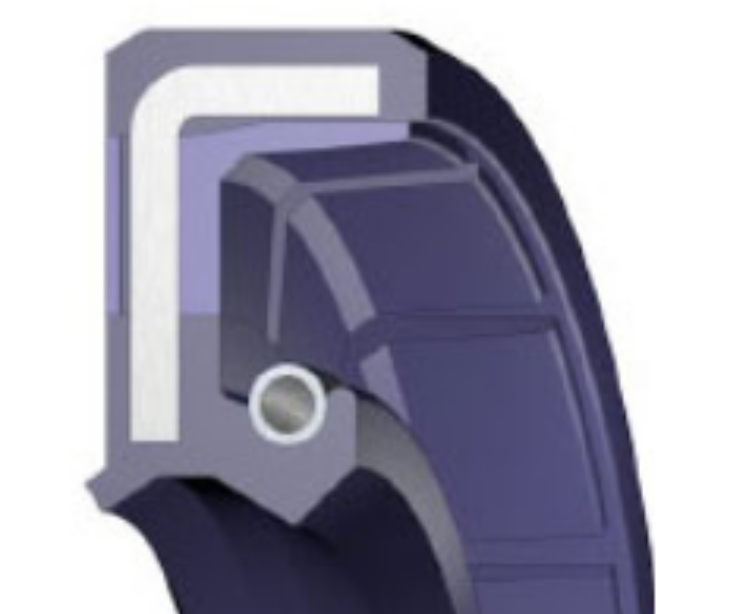

Pressure loadable radial shaft seal Elastomer-coated OD, flat Short spring-loaded sealing lip Protective lip against entry of contamination from outside (dust, dirt,...)

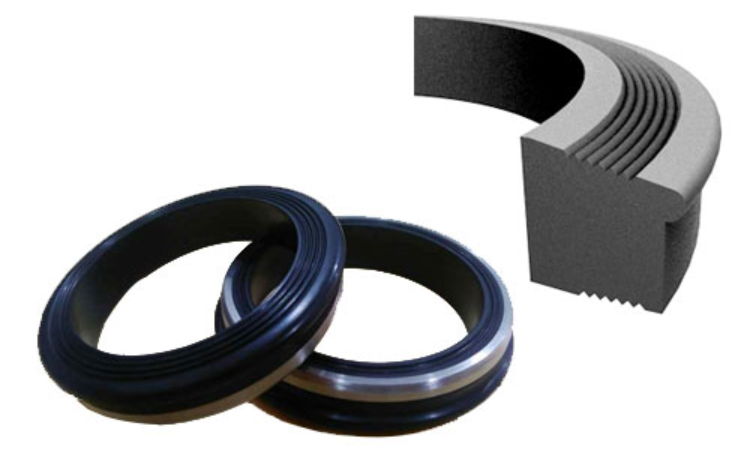

Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage. Hammer Unions are made by Weco, FMC, and Kemper Valve among others, and are used in the Oil & Gas Industry, in steel mills, chemical plants, strip mining, and marine dredging.

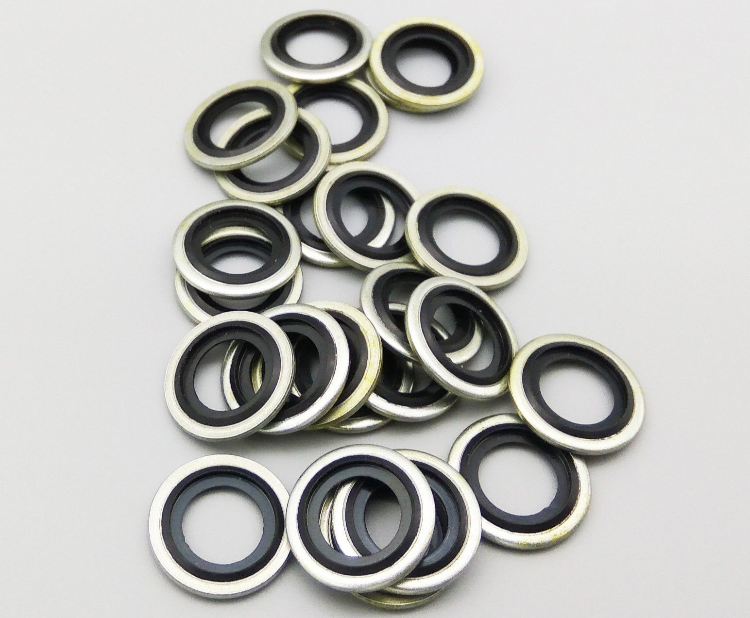

A bonded seal is a type of washer used to provide a seal around a screw or bolt. Originally made by Dowty Group, they are also known as Dowty seals or Dowty washers. they are available in a range of standard sizes and materials.

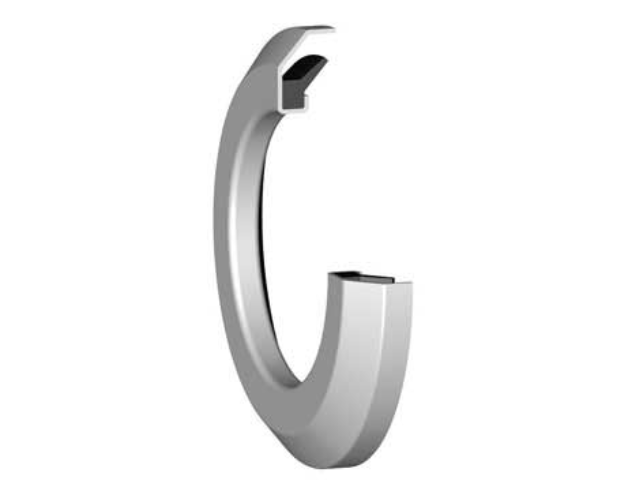

In mechanical engineering, a face seal is a seal in which the sealing surfaces are normal to the axis of the seal. Face seals are typically used in static applications and are used to prevent leakage in the radial direction with respect to the axis of the seal.

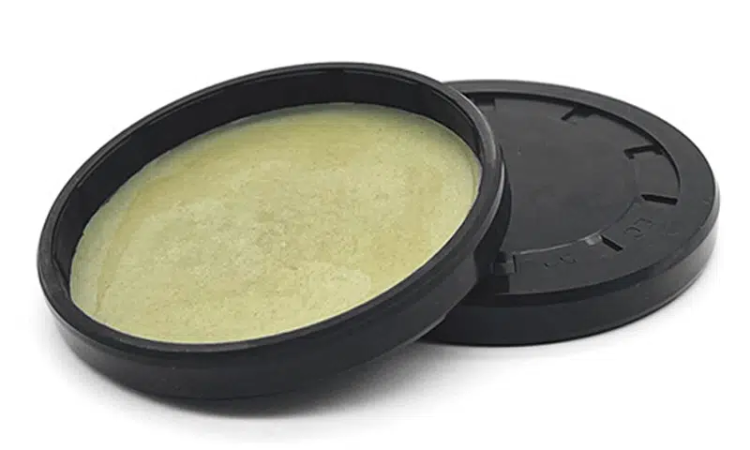

End caps are used in order to seal bearings, e.g., in gearboxes, where the shaft does not pass through the housing wall. This product offers great advantages for design and production.
