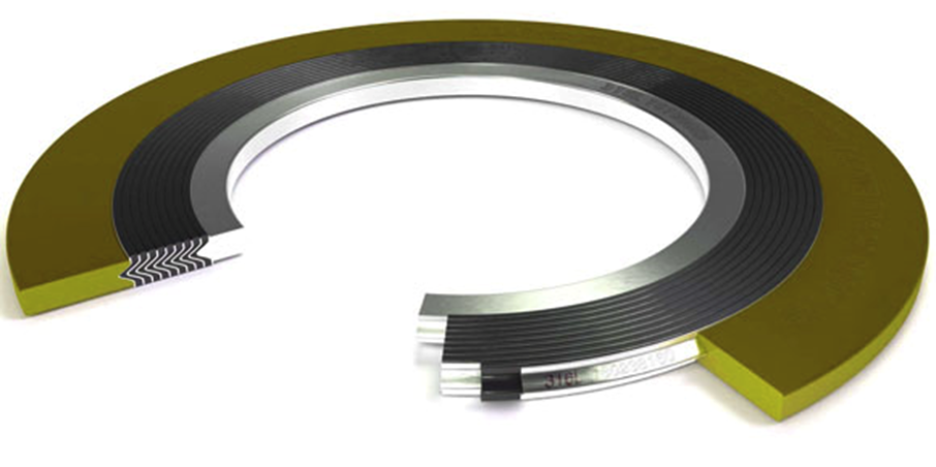

Spiral wound gasket comprise a mix of metallic and filler material. Generally, the gasket has a metal (normally stainless steel) wound outwards in a circular spiral (other shapes are possible) with the filler material (generally a flexible graphite) wound in the same manner but starting from the opposing side.

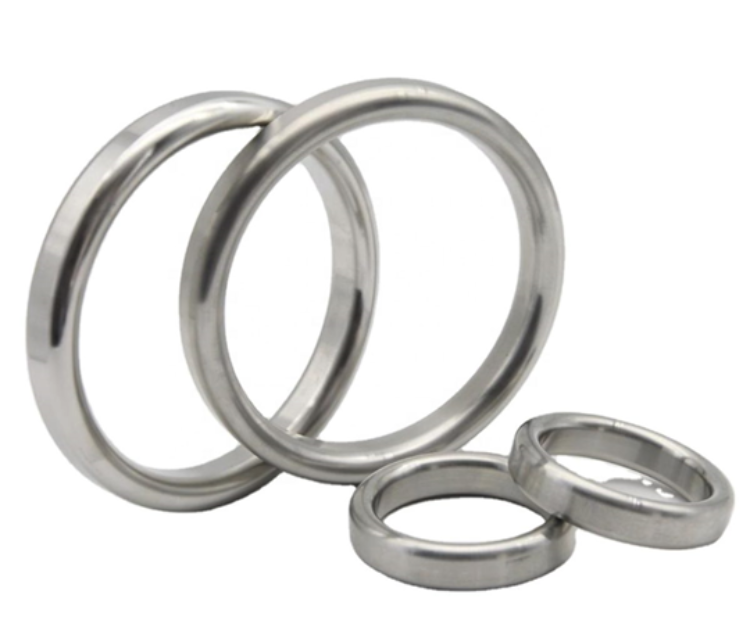

Ring Joint gasket come in two basic types, an oval cross section and an octagonal cross section .These basic shapes are used in pressures up to 10,000 psi. The dimensions are standardized and require specially grooved flanges. The octagonal cross section has a higher sealing efficiency than.

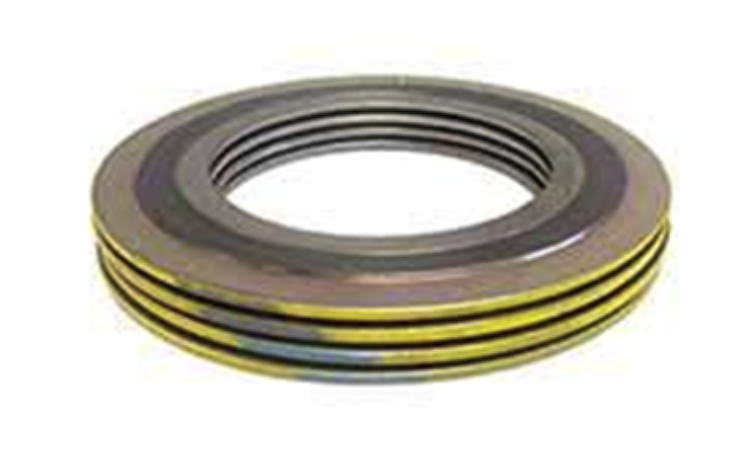

This Inconel Spiral Wound Gasket can be made according to different locking force requirements, and the inner and outer steel rings are used to control its maximum compression degree.

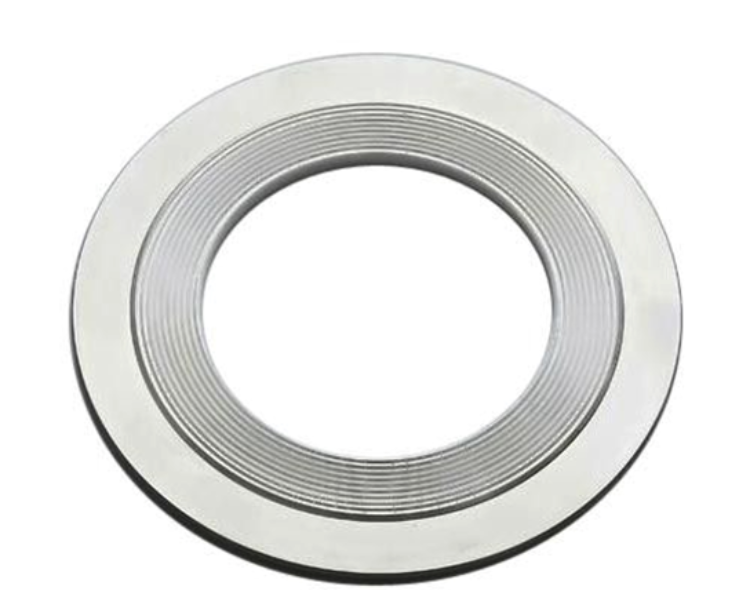

The Stainless Steel Spiral Wound Gasket is equipped with advanced process, which has the advantage of high temperature, high pressure, corrosion resistance, good compression rate and rebound rate. And it plays an important role in pipes, valves, pumps, manholes, pressure vessels and so on.

RX Type ring joint gaskets are manufactured to fit the API 6B flange"s groove,interchangeable with R(oval) and R(octagonal) series,bear pressure can reach to 15000 PSI,so these gaskets performance excellent in 6B flange, suitable to the higher pressures with higher vibrations and heavier

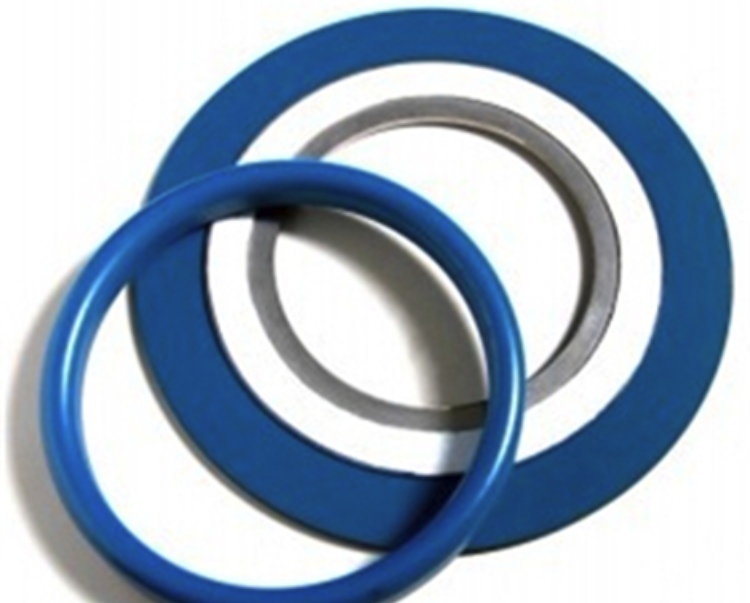

The PTFE coated spiral wound gasket is a special gasket for using in clean condition . The inner ring and outer ring coated with teflon layer to make sure no any pollution .The basic type made by PTFE tape and clean steel tape ,this type spiral wound gasket usually use in special requirement

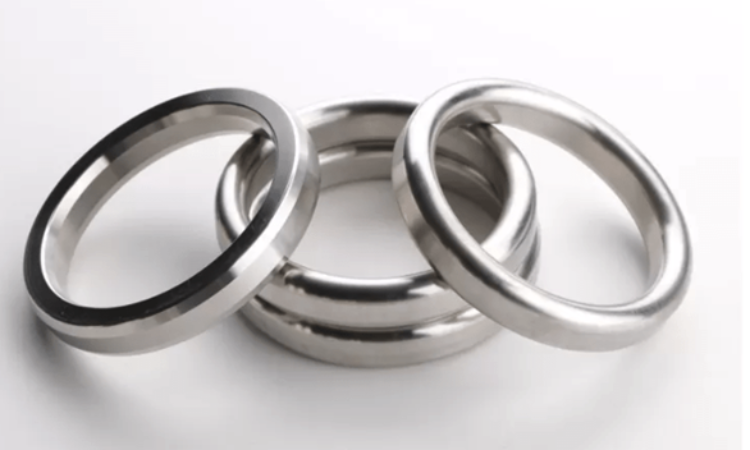

R Series Oval Ring Joint Gasket for Flanges ASME B16.5/ASME B16.20

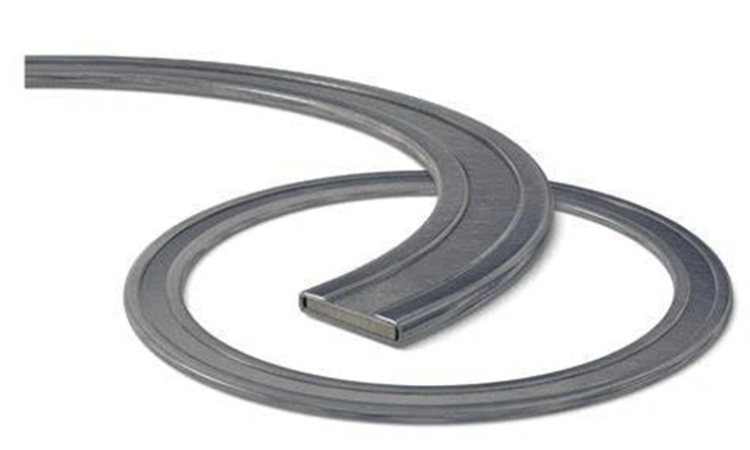

Monel 400 alloy (UNS n04400) is a kind of nickel based alloy material use for Double Jacketed Gasket.

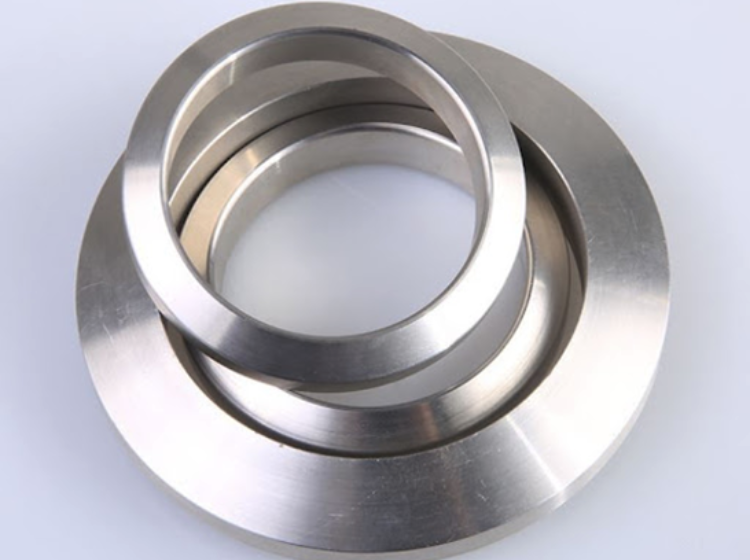

Lens ring gasket, also known as washer with ball face, is mainly used for the high pressure pipe connections. The primary function of lens ring gasket is to seal. Metal lens gaskets includes metal flat gasket, triangular gasket, double cone ring, C-ring and C type gasket, ring gasket, serrated gasket, wave gasket and hollow o-ring, etc..

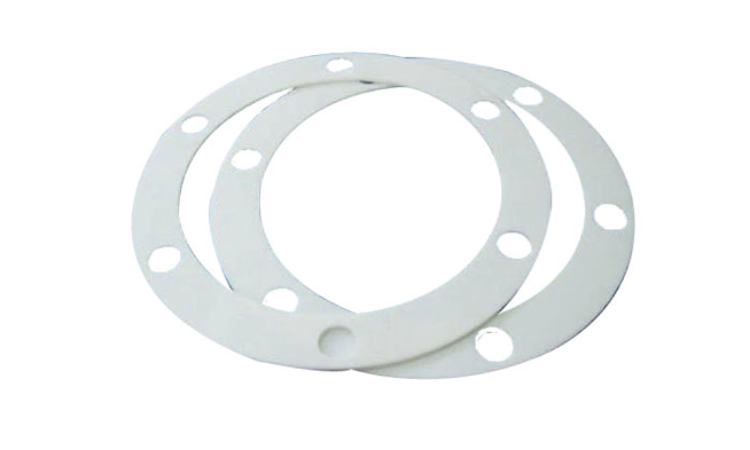

PTFE Gaskets Suitable for exposure to extremely harsh chemicals, these PTFE encapsulated gaskets deliver enhanced sealing performance including excellent purity, low stress to seal, chemical capability, reduced creep and cold flow characteristics.

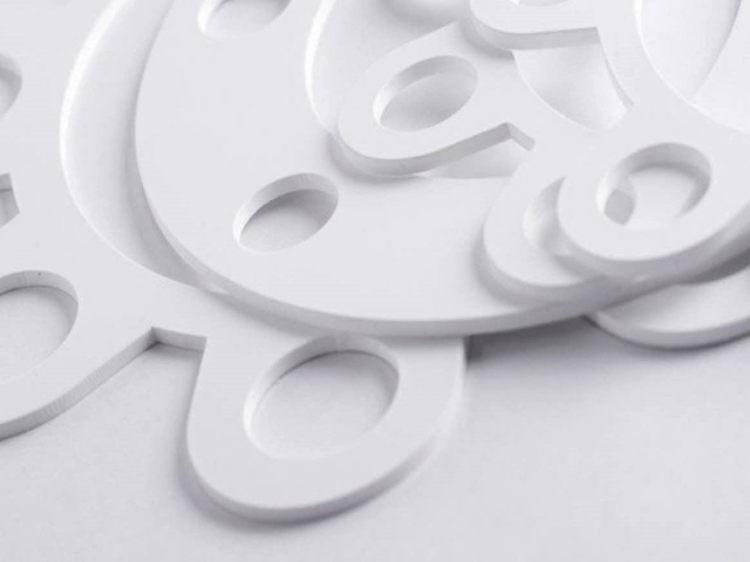

Expanded PTFE gasket was cut from expanded PTFE sheet, is an extremely compressible material manufactured from 100% virgin PTFE.

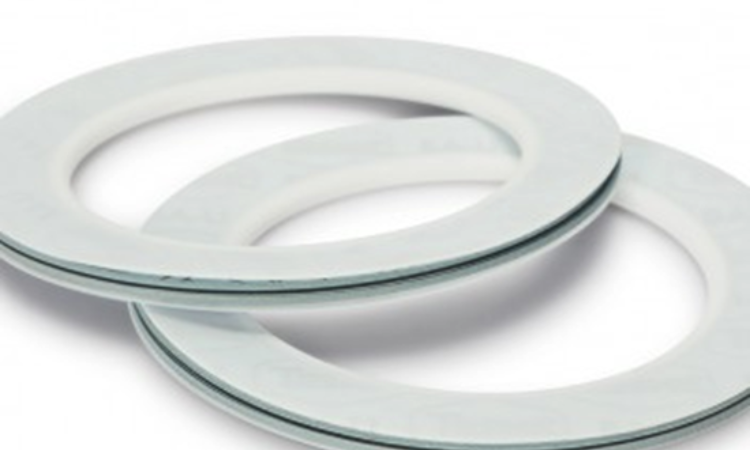

PTFE envelope gasket is a composite gasket where the product consists of an envelope of PTFE with an insert material.

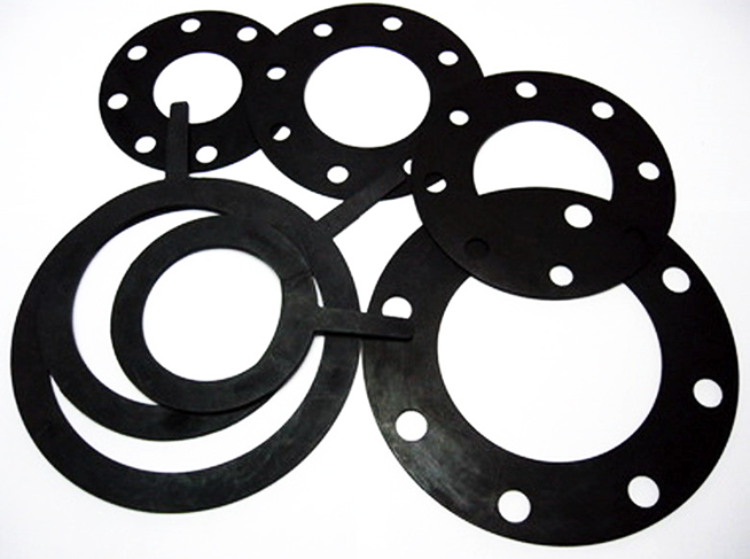

Nitrile Rubber Gaskets Material

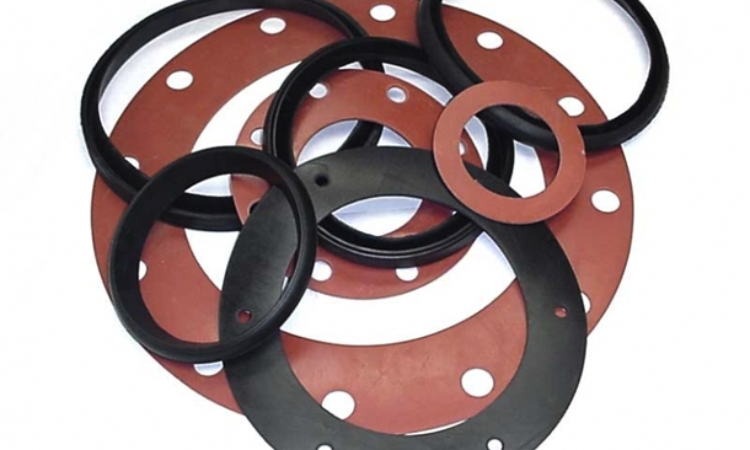

Flange Gaskets

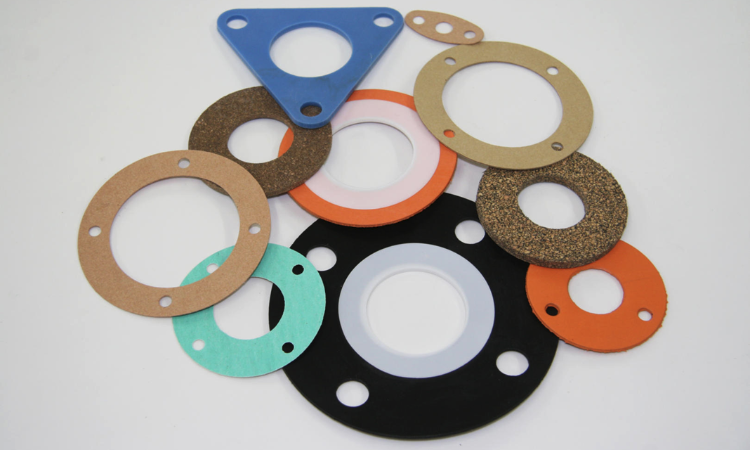

Pipe & Flange Gaskets - Standard & Custom
